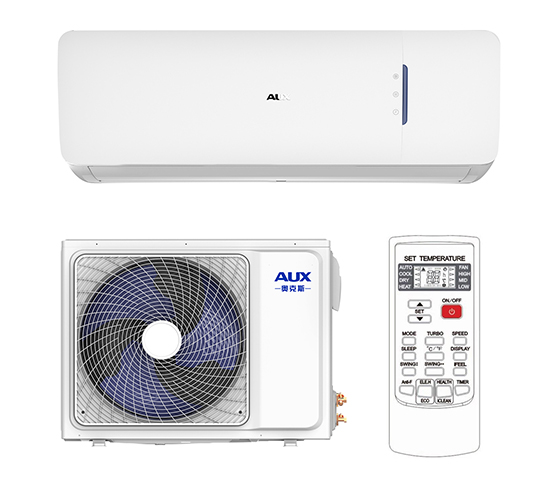

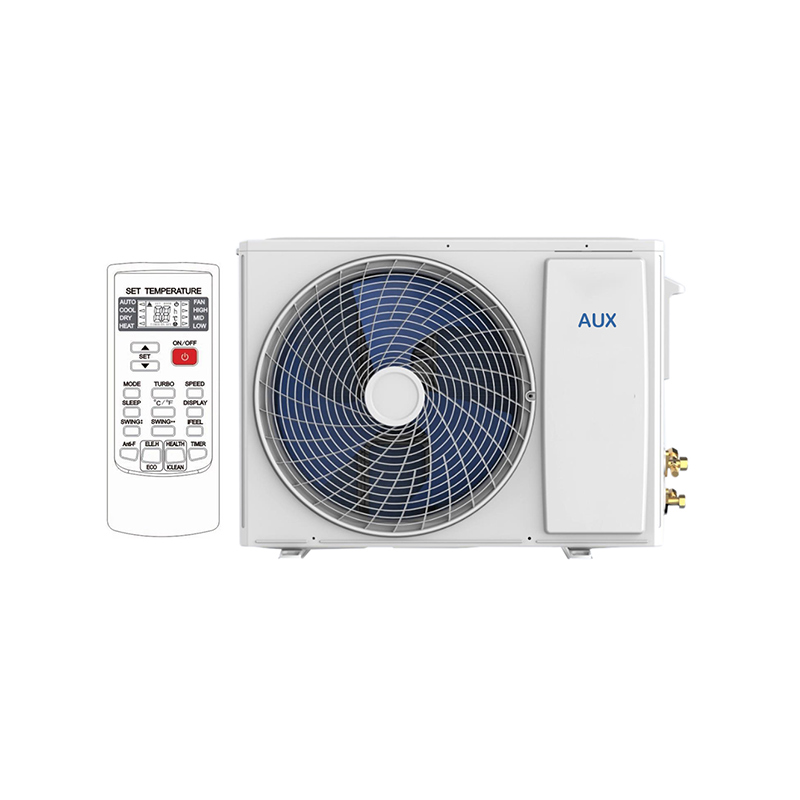

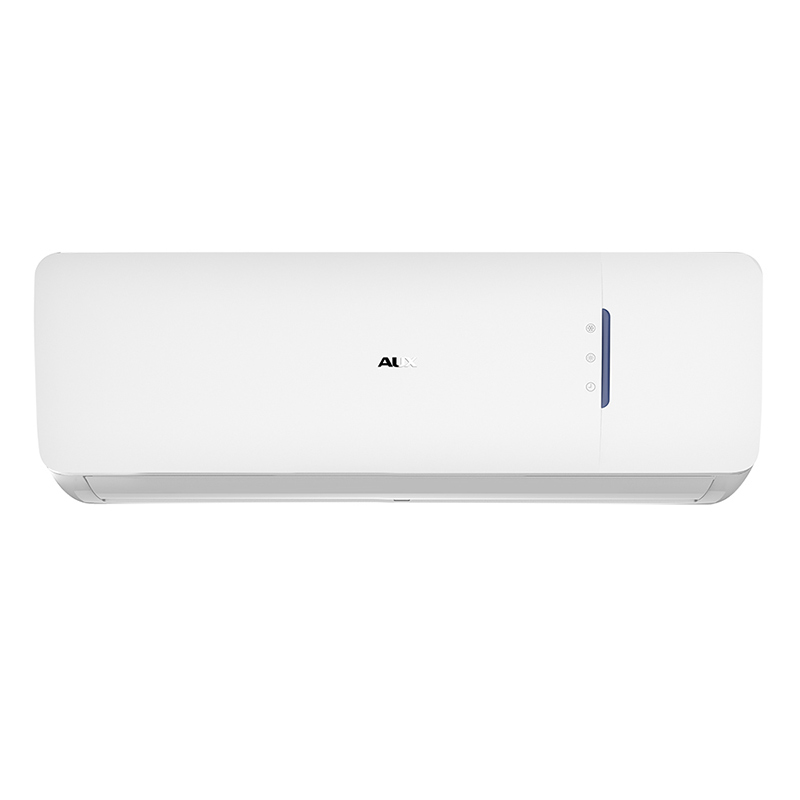

AUX Commercial 12000BTU 18000BTU 24000BTU Cooling Heating Split Wall Air Conditioning with Remote Control

The Commercial Cool AUX Split Air Conditioner is an excellent and efficient way to cool or heat your home all year round. Easy to install, and clean with removable and washable air filter our system delivers comfort for your home or office any time throughout the year. Split air conditioners are a convenient and cost-effective way of heating and cooling your living or workspace. The Commercial Cool system is whisper quiet and unobtrusive in its size. No more large, loud central air conditioning units that are costly to install and don’t offer flexible heating and cooling options. Our unit is easy to install, no ductwork involved, flexible in its placement options and offers more choices with temperature control. The Commercial Cool system is ideal for any room in the house or where ductwork won’t fit. Great for nurseries, enclosed patios, basements, and home offices.

PRODUCT SPECIFICATION SHEET
Items  Platform H H
Cooling 12K 18K
Model ASW-H12C5C4/HAR3DI-B8 ASW-H18E3D4/HAR3DI-C0
Rated Capacity  Cooling  kW 3.5(0.8-4.1) 5.3(1.3-5.9)
Heating  kW 3.8(1.0-4.2) 5.6(1.3-6.0)
Dehumidifying  Kg/h 1 1.6
Rated Power Consumption
额定功率
Cooling  kW 1.18(0.1-1.6) 1.58(0.29-2.1)
Heating  kW 1.10(0.3-1.6) 1.55(0.25-1.8)
Rated Running Current
额定电流
Cooling  A 5.6(0.7-7.8) 7.5(2.2-9.3)
Heating  A 4.9(1.5-8.0) 7.0(2.0-8.0)
Max. Input Power  kW 1.9  2.4
Max. Input Current A 9.5  12
Pdesign-cooling (kW)       / 3.5  5.3
Pdesign-heating (kW)-average       / 2.7  4.4
Annual power consumption-cooling (kwh/a) / 198  265
Annual power consumption-heating (kwh/a)-average / 938  1470
EER (EN14511-3) / 3.26  3.24
COP (EN14511-3) / 3.81  3.73
SEER / 6.19 7
ENERGY LEVEL / A++ A++
SCOP / 4.03 4.19
ENERGY LEVEL / A+ A+
Power supply source V/Ph/Hz 220-240V-1-50Hz 220-240V~/50Hz
Refrigerant   R32 R32
Refrigerant Charged g 560 1030
Max. Discharge Pressure  Mpa 4.3 4.3
Max. Suction Pressure Mpa 2.5 2.5
Air Flow Volume m3/h 600 850
Noise level IDU dB(A) 53 57
Noise level ODU dB(A) 62 62
Indoor unit  weight (Net )  Kg 8.5 11.5
Outdoor unit  weight  (Net ) Kg 22.5 28
IDU Fan motor      Model  Pcs YYK18-4B D-310-30-8
Rated Output Power W 18 40
Compressor Model    KSN98D34UER3 KSN140D53UFZM3
Compressor type    rotary ROTARY
Compressor Brand    GMCC GMCC
ODU Fan motor       Model    D-35-10A  D-40-10
Rated Power W 35 40
IDU Net Dimension  (WxDxH) mm 788*292*198 940*316*224
IDU Packing  Dimension  (WxDxH) mm 888*370*290 1010*385*310
ODU Net Dimension  (WxDxH) mm 705*279*530 785*300*555
ODU Packing  Dimension  (WxDxH) mm 825*345*595 888*367*590
Loading qty (40HQ)-Without  pipe / 293  208

Items



F series

Model

F-24000BTU

Rated Voltage

220v-240v

Rated Frequency

50Hz

Pdesign-cooling (kW)

6.7

Pdesign-heating (kW)-average

5.7

Pdesign-heating (kW)-warmer

7

Annual power consumption-cooling (kwh/a)

359

Annual power consumption-heating (kwh/a)-average

1950

GWP

675

Cooling Capacity (BTU/H)

24566.4(6141.6~25248.8)

Cooling Capacity (kW)

7.2(1.8-7.4)

Heating Capacity (BTU/H)

24566.4(6141.6~27296)

Heating Capacity (kW)

7.2(1.8-8.0)

Cooling Current (A)

10(1.0-12.)

Heating Current (A)

9.5(1.0-11)

Cooling Input (kW)

2.2(0.23~2.76)

Heating Input (kW)

2.2(0.23~2.53)

Dehumidification capacity (Kg/h)

2.5

SEER Cooling

6.53

SEER energy class

A++

SCOP Heatingaverage

4.09

SCOP energy classaverage

A+

SCOP Heatingwarmer

5.27

SCOP energy classwarmer

A+++

Max. Input Current (A)

16

Max. Input Power (kW)

3.4

Max. Discharge Pressure (Mpa)

4.3

Max. Suction Pressure (Mpa)

2.5

Refrigerant

R32

Refrigerant Quantity (kg)

1.3

tCO2eq.

0.88

Indoor/Outdoor Unit Noise(Sound Power) (dB)

63/66

Indoor Unit Net Weight (kg)

14

Outdoor Unit Net Weight (kg)

39

Dimension(indoor)-net

1082*330*233

Dimension(indoor)-package

1155×397×312

Dimension(outdoor)-net

900×700×350

Dimension(outdoor)-package

1020×770×430

loading quantity (1*40HQ)

142

Stop valve dimension

Dg4/Dg13 (1/4-5/8)

Fan motor (indoor) type

DC

Fan motor (outdoor) type

DC

Indoor Electric Shock Prevention

Class I

Indoor Water-proof Class

IPX0

Outdoor Water-proof Class

IPX4

Max pipe length (m)

25

Max installation fall (m)–*both indoor higher or outdoor highe

15

Additional added gas charge per meter added copper pipe (g

30

Max pipe length (m) for pre-charge gas

7

Air Flow Volume (m3/h)

1300
